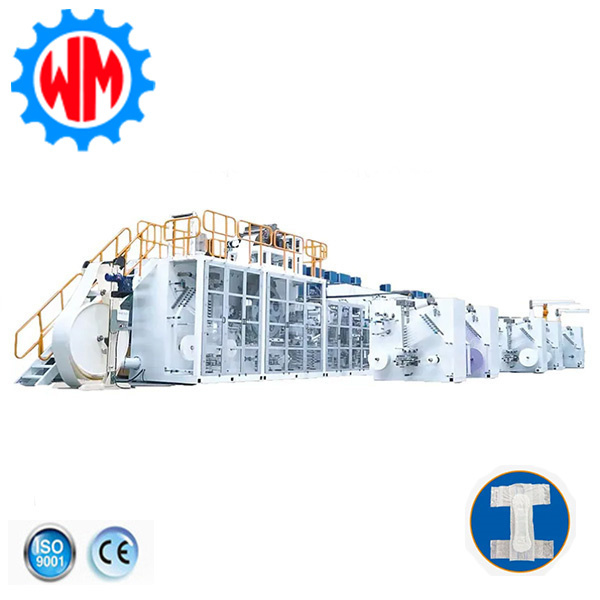

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE

Marchio:	Womeng
Numero di modello:	WM-FSA01
MOQ:	1 pezzo
prezzo:	$500,000.00-$800,000.00
Dettagli dell' imballaggio:	Scatola di legno idonea alla navigazione
Condizioni di pagamento:	L/C,D/A,D/P,T/T

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Fujian, Cina

Certificazione:

Modalità di funzionamento:

Completamente automatico

Colore della macchina:

Secondo su misura

Progettazione:

Sistema di controllo servo completo

Funzioni:

Alimentazione automatica, taglio e impilazione

Sistema di controllo:

Controllo PLC

Velocità di produzione:

Regolabile

Materie prime:

Tessuti non tessuti, SAP, pasta di pellicola, cinture elastiche

Interfaccia dell'operatore:

Dispositivo touch

Compressore d'aria:

0.6-0.8Mpa

Capacità di alimentazione:

20sets/year

Descrizione del prodotto

Product Info

Product size	M: 680X450 L: 800X650 XL: 950X760(Customixed according to customer requirement)
Product structure	Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system	PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system	Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system	Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B shaft active unwinding by inverter motor.
Safety system	It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system	according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system	Materials corrective system: Adopt international famous brand deviation correction system
Power	380V, 50HZ three phase five wire
Machine Capacity	400KW (Excluding glue machine and air compressor)
Bleed pressure	0.6-0.8Mpa (Air compressor needs to be prepared by customers)

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE 0

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE 1

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE 2

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE 3

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE 4

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.
The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.
Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE 6

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE 7

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE 8

400pcs/min High Speed Adult Diaper Making Machine Pull-up Machinery with CE 11

Whatsapp: +008615805080212

Medical-grade production standards and safety advantages

Aseptic production process

The production line is equipped with the Class 8 cleanroom integrated interface (which can be connected to the customer's cleanroom). The key processes (such as core forming and packaging) adopt aseptic grade stainless steel material (316L), with a surface roughness of ≤0.8μm, meeting the production requirements of medical-grade incontinence products in the EU GMP (Good Manufacturing Practice for Pharmaceuticals).

The integrated ultraviolet sterilization and ozone disinfection system conducts online sterilization of raw materials such as non-woven fabrics and absorbent resins. The microbial residue is ≤10CFU/g, meeting the hygiene standards for medical adult diapers in countries such as Germany and France.

Allergen control technology

It adopts the glue-free ultrasonic welding process (replacing traditional hot melt adhesive), avoiding the residue of chemical adhesives. At the same time, it has passed the 191 substances of very high concern (SVHC) test of the EU REACH regulation, and is suitable for people with sensitive skin (the skin sensitivity rate of people over 65 years old in Europe is 42%).

The core material has passed the skin patch test, and a biocompatibility report issued by a notified body of the European Union can be provided to support customers in applying for CE-MDR (Medical Device Regulation) certification.
