400pcs/min Lady Pants Menstrual Panties Making Machine Professional Customzation

Marchio:	Womeng
Numero di modello:	WM-AMD01
MOQ:	1
prezzo:	$800,000.00-$9500,000.00
Dettagli dell' imballaggio:	Scatola di legno di mare
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Fujian, Cina

Certificazione:

Tasso di accettazione:

250-400pocchi/minuto

Tasso del prodotto finito:

Funzione:

Taglio, piegatura, sigillazione, conteggio e impilamento

Materiale:

Acciaio inossidabile

Tipo di produzione:

Automazione completa

Modalità operativa:

AUTOMATICO

Progetto:

Sistema di controllo servo completo

Sistema di imballaggio:

Auto Stacker (Design personalizzato)

Capacità di alimentazione:

10sets/year

Evidenziare:

menstrual panties making machine

sanitary napkin machine 400pcs/min

custom menstrual panties production machine

Descrizione del prodotto

400pcs/min Lady Pants Menstrual Panties Making Machine Professional Customization

Product Specifications

Attribute	Value
Acceptance Rate	250-400pieces/minute
Finished Product Rate	≥98%
Function	Cutting, folding, sealing, counting, and stacking
Material	Stainless Steel
Production Type	Full-automatic
Operation Mode	Automatic
Design	Full Servo Control System
Packaging System	Auto Stacker (Customized Design)

Technical Details

Product size: 40m*6m*4m (for reference only)
Product structure: Upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven, ADL (Acquisition distribution layer) non-woven, leak guard hydrophobic non-woven back sheet, waist band non-woven, color pattern sticker, elastic waist band, discarding sticker.
Control system: PLC control system, HMI Operating on the LED touch screen, Configure HDTV monitor
Drive system: Servo Drive (Easy to change size), timing belt and flat belt are import products, and all the key parts are import bearings.
Tension system: Top tissue paper, bottom tissue paper, hydrophobic nonwoven (leg cuff), top nonwoven, ADL, back sheet, elastic nonwoven are adopt A&B shaft active unwinding by inverter motor.
Safety system: It has safety device on the operating side, matched with urgent stop switch. High audio fan uses sound insulation or silencer.
Packaging system: According to customer requirements with palletizer machine (double push double exit) adjustable
Materials corrective system: Adopt international famous brand deviation correction system
Power: 380V, 50HZ three phase five wire
Machine Capacity: 400KW (Excluding glue machine and air compressor)
Bleed pressure: 0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight: 100 Tons approximately

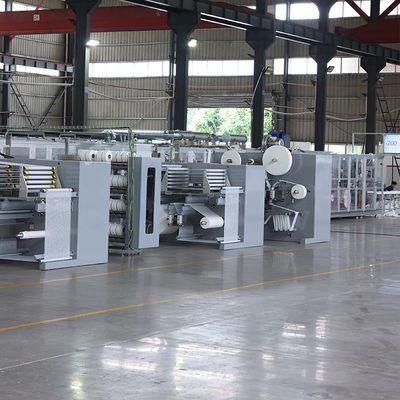

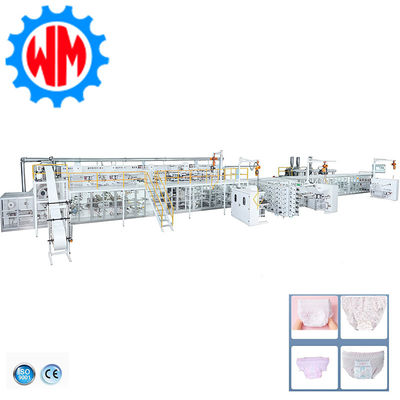

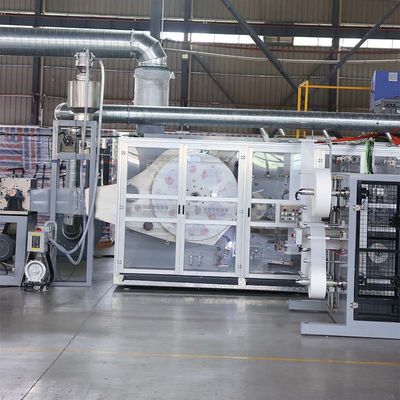

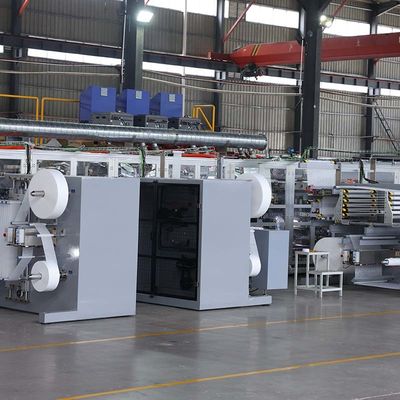

Machine Images

Company Information

Quanzhou Womeng Intelligent Equipment Co., Ltd. is located in Quanzhou, the cultural capital of East Asia and the starting point of the Maritime Silk Road. Founded in 2016, it is an enterprise focusing on the R&D, manufacturing and sales of paper equipment. The products cover sanitary napkin equipment, diaper equipment, pant equipment, mattress equipment, pad equipment, etc.

The company has excellent products, professional sales and technical teams, complete supporting facilities, and according to different market product specifications, each equipment is customized according to the actual needs of users, and has rich experience and technical capacity in the design and production of equipment.

Adhering to the business philosophy of honesty, cooperation and win-win, the company wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the greatest extent. Serving customers and achieving customers, "pioneering and innovating, pursuing excellence" is the constant pursuit of Womeng Equipment. We sincerely look forward to cooperating with new and old customers to create the future!

Key Features

Visualization of raw material loss helps with precise cost control

The production line is equipped with a basic raw material usage statistics function, which can record in real time the raw material consumption data of each batch of products such as non-woven fabric and absorbent core, and generate simple reports (supporting Excel export), helping customers clearly understand the raw material loss rate, facilitating targeted optimization of procurement plans and reduction of waste.

For the links prone to loss in the production of menstrual pants (such as the cutting of elastic waistlines and the splicing of leak-proof edges), reasonable loss threshold reminders are preset. When the loss exceeds the standard, timely warnings are issued to avoid hidden cost increases caused by improper operation or deviations in equipment parameters.

Adapt to the demands of small-batch trial production and reduce the market's trial-and-error costs

Supports small-batch flexible production (such as a single trial production of 500-1,000 pieces), without the need to reach a fixed large quantity as in traditional production lines before starting up. This makes it convenient for customers to test product formulas and patterns in new markets (such as a newly entered small African country), verify market acceptance, and then expand production capacity, reducing the risk of blind production start-up.

When producing in small batches, the parameter switching is fast (for example, it only takes about 30 minutes to switch from the night-use model to the daily-use model), which helps customers respond flexibly to short-term orders (such as festival promotions and emergency replenishment), and improves the response speed to market demands.

Contact Information

Whatsapp: +008615805080212

Email: jessie@wm-machinery.com

Website: https://www.diapersmachines.com
